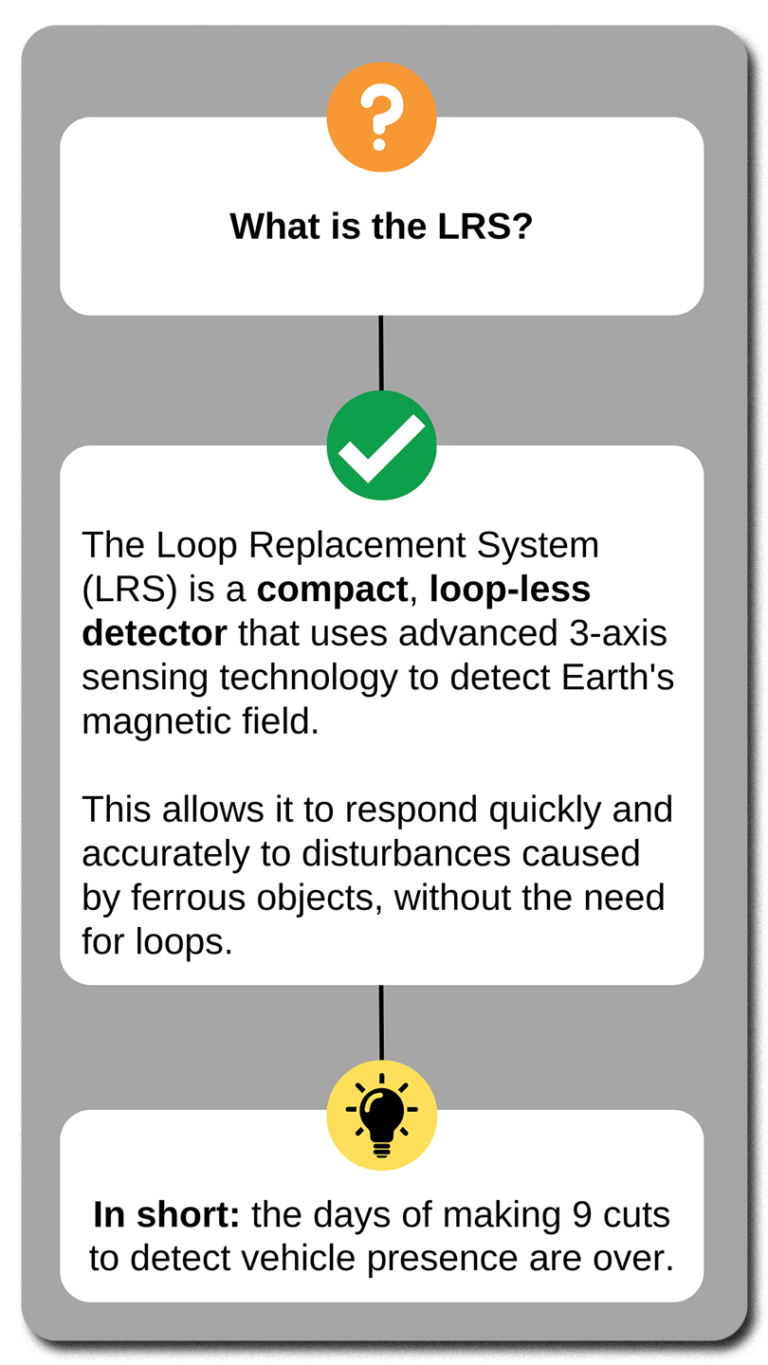

Loop Replacement System
You can now monitor vehicle presence with a single saw cut.
Simplify Vehicle Detection With The LRS

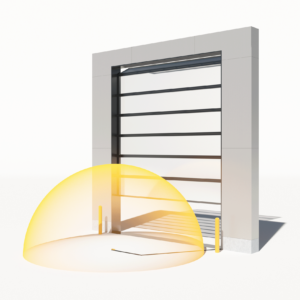

The LRS has 10 sensitivity levels and a detection diameter of up to 3m (10ft.), making it the perfect all-around solution for detecting vehicles when installed either above or below ground.
Easy installation above or below ground

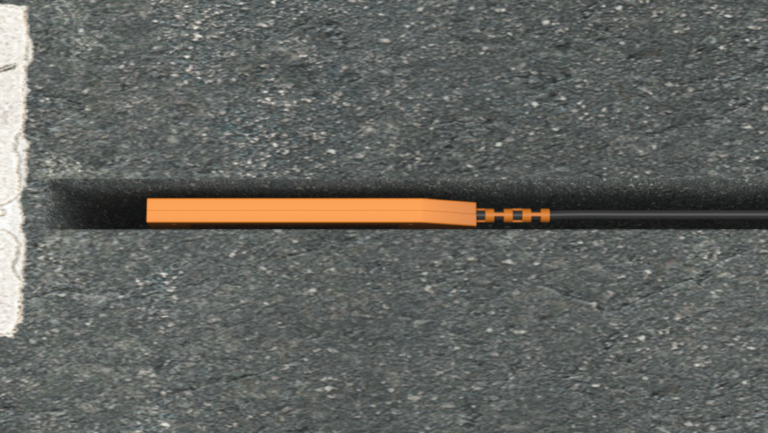

The small size of the LRS allows for easy installation in pavement with a single saw cut. The LRS flat pack (FP) and direct burial (DB) sensors are also suitable for above ground installations, making them ideal for use in confined areas or hidden in non-ferrous architectural components for security purposes.
Quick setup
THE ULTRAMETER™ SENSITIVITY DISPLAY shows the sensitivity setting required to detect a vehicle near the sensor. To use this feature, observe the display while a vehicle is moving into position near the sensor, note the number displayed, then adjust the sensitivity setting to the displayed position.
Ignore cross traffic with DETECT-ON-STOP™
The Detect-On-Stop™ (DOS®) feature requires that a vehicle must come to a complete stop near the sensor for a minimum of 1-2 seconds before the output activates.
Reduce install time and Callbacks
Thanks to easy configuration and adjustability, the LRS is simple to install and easy for users to adjust.
Long lasting
Rugged construction means longevity and fewer service calls to replace components.
Made in the USA
Products are made in the USA, so any parts or service needs are handled faster.
Frequently Asked Questions
Yes, unless you have an LRS-L(logic interface) or you can utilize the NPN output available from the FP/DB.
If you have the LRS-L, you will still need one controller for initial programming of the sensor.
Shapes the detection field to reduce sensitivity from objects in the direction of the OFF axis.
They default to all ON if all three are set to off.
If there is no car parked near the sensor, this means the sensor sees a disturbance from ferrous metal local to the sensor or the sensor itself has moved since the calibration with controller.
A hard sealant that wont flex as pressure is applied to it. If the sealant can flex, it may allow slight sensor movement which will cause false detections/lockups.
The sealant also shouldn’t extend above the roadway. If it does, vehicle weight may be applied directly to the sensor and cause false detect/lockups.

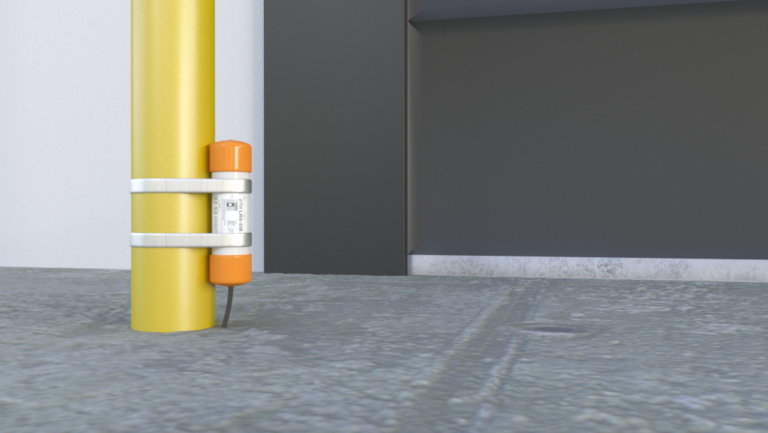

Yes, it is somewhat easier to mount the DB sensor using straps but either model (DB or FP) can be mounted above ground if they are secured in a way that ensures no movement.
Technical Details
Control Unit
Sensor
Control Unit & Sensor
Logic Interface
Control Unit
| Power/fault indicator | Green LED |
| Detect indicator | Red LED |
| Outputs | SPDT relay/NPN (open collector) |
| Output ratings | Relay: 1A @ 24VDC…120VAC NPN: 50 mA (max) |
| Connection | 10 position screw terminal |
| Housing | ABS |
| Environmental rating | IP30 |
| Power supply | 12-30 VDC and 24 VAC |
| Current draw | 40 mA max |
| Dimensions | 76mm (3.0”) x 22mm(0.9”) x 70mm(2.75”) |
| Weight | 68g (0.15 lbs.) |
Sensor
| Outputs | NPN (open collector) |
| Output ratings | 50 mA |
| Connection | 5 conductor direct burial |
| Housing | DB: PVC; FP: Polyamide |
| Environmental rating | IP69K |
| Power supply | 12-30 VDC |
| Current draw | 10 mA max |
| Dimensions | DB:102mm (4.0”) x 27mm (1.0”); FP: 86mm (3.4”) x 21mm (0.9”) x 8mm (0.3”) |
| Weight | DB: 43g (0.09 lbs.); FP: 23g (0.05 lbs.) |
Control Unit & Sensor
| Sensing technology | 3-axis magnetoresistive |
| Sensitivity | 10 levels: 0-9 |
| Axis sensitivity | 512 counts/gauss (typical) |
| Environmental tracking | Automatic compensation |
| Local magnetic field nulling | Averages local field signature in any sensor orientation |
| Detection range | 1.5m (5ft.) |
| Pulse/presence | Allows the relay/NPN output to send either a pulse output or have constant presence |
| Detect-On-Stop | Requires vehicle to stop for a minimum of 1 second (1-2s typical) |
| Operating environment | -40°C…82°C (-40°F…180°F) |
| Supply protection circuitry | Reverse polarity and fuse protected |
Logic Interface
| Power indicator | Green LED |
| Detect indicator | 2x Red LEDs |
| Configuration selector | 10 position rotary switch |
| Outputs | Relay 1: SPDT (form C) Relay 2: SPST (form A) |
| Output ratings | 1A @ 24 VDC/120 VAC |
| Operating environment | -40° C…82° C (-40° F…180° F) 0…95% relative humidity |
| Housing material | ABS |
| Enclosure | IP30 |
| Power | 12-30 VDC and 24 VAC |
| Operating current (standby/detect) | One sensor connected: 22/35mA Two sensors connected: 33/60mA |
| Supply protection circuitry | Reverse polarity and fuse protected |
| Dimensions | 73mm (2.9”) x 38mm (1.2”) x 78mm (3.1”) |
| Weight | 0.25 lbs. (113 g) |
| Connector | 11 pin male connector (JEDEC B11-88) |
